Barbed Tape Concertina Coils, Supplied with Customized Sizes for Export

TO: Wholesale Agents and Customers

We supply a variety of customized BTC products for importers, wholesalers, and customers. BTC is the simplified term of Barbed Tape Concertina or Barbed Tape Concertina Coils.

S/S 304 Barbed Tape Concertina Coils, Customized size, export standards, for Singapore Market.

For more details:

Name: stainless steel 304 barbed tape concertina coils

1) Quantity 25 Sets
12 x 730mm x 10 mtrs coil Barbed Tape Concertina Coils, Short Barb, Stainless Steel 304

Accessories :
a) 2 x Bolt Cutters
b) 2 x Extended Clip Applicator NSN : 5120-99-290-6250
c) 2 x No Clip Removers
d) 3 x Wire Tie Rachets
e) 1000 x 12" Stainless Steel Wire Ties
f) 1000 x 6" Stainless Steel Wire Ties
g) 10 kgs Extended Dovetail Clips Stainless Steel
h) 2 x Handling Hooks
i) Storage/Transport Box constructed from Marine Plywood with pallet base

2) Quantity 4 Sets
50 x 730mm x 10 mtrs coil Barbed Tape Concertina Coils, Short Barb, Stainless Steel 304

Accessories :
a) 2 x Bolt Cutters
b) 2 x Extended Clip Applicator NSN : 5120-99-290-6250
c) 2 x No Clip Removers
d) 6 x Wire Tie Rachets
e) 3000 x 12" Stainless Steel Wire Ties
f) 3000 x 6" Stainless Steel Wire Ties
g) 20 kgs Extended Dovetail Clips Stainless Steel
h) 4 x Handling Hooks
i) Storage/Transport Box constructed from Marine Plywood with pallet base

3) Quantity 2 Sets
75 x 730mm x 10 mtrs coil Barbed Tape Concertina Coils, Short Barb, Stainless Steel 304

Accessories :
a) 2 x Bolt Cutters
b) 2 x Extended Clip Applicator NSN : 5120-99-290-6250
c) 2 x No Clip Removers
d) 6 x Wire Tie Rachets
e) 3000 x 12" Stainless Steel Wire Ties
f) 3000 x 6" Stainless Steel Wire Ties
g) 20 kgs Extended Dovetail Clips Stainless Steel
h) 4 x Handling Hooks
i) Storage/Transport Box constructed from Marine Plywood with pallet base

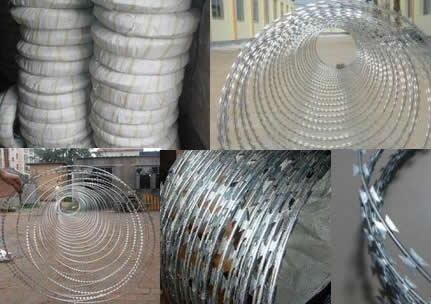

SS concertina barbed tape, packed, looped, ready for shipment

Our customized products, Galvanized Concertina Tape Barbed Wire, export to United Kingdom.

SPECIFICATION FOR –Galvanized Concertina Tape Barbed Wire,

S/NO	TECHNOLOGY SPECIFACATION
1.	Type of Wire	Galvianized concertina Tape barbed Wire
2.	Weight per coil	14.5 Kg  +/- 0.50 kg
3.	Diameter of Coil	900 mm  - 950 mm
4.	Effective Extended Length  of coil	Extended length  of coil min. 10 meter Spiral to spiral  distance max. 300 mm when stretch
5.	Spiral turns per coil	55-60 (Extended length 10 m) In compliance with ASTMF1910-98 (Re- approved 2003)
6.	Diameter of center wire	Min. 2.5 mm +/- 0.05 mm
7.	Thickness of Clips and Number of Clips per Turn	1.77 +/-.07 mm , 5.7 clips per turn
8.	Thickness of Galvanize Blade	0.50 +/- 0.05 mm
9.	Centre to Centre distance between blades along central wire	37 +/- 0.07 mm
10.	Handling Facility	The barbed tapes have handles at each end of the coil for easy setting up.
11.	As supplier, we also supply these documents:	1.Country of Origin 2.Manufacturer's technical brochures original. 3.Test report meeting up to International standards ISO certificate etc. 4.Manufactuer's certificate of quality and quantity. 5.Other documents needed.

Installation Instructions of Concertina Barbed Tapes

Concertina barbed tape coils are installed on the ground or an existing fence to create high performance physical obstructions extremely difficult to overcome. The main advantage of concertina razor wire is that its blade design can retain their protective properties even it is partly damaged. Also, the concertina barbed wire fence is easily installed and disassembled, allowing repeated uses.

Installing of High Strength Barbed Tape Coils to Existing Walls:
Barbed tape wire concertina type of galvanised steel wires with a tensile strength of 800 kg. Wire to be mounted to the enclosure walls.
The loop diameter 750 mm and strand diameter 4 mm.
BTO-22 and CBT-60 concertina razor edge wire, triple coils in pyramid shape, base coil diameter 73 cm and top diameter 98 cm Hot dipped/Galvanized for a security solution.

Concertina Barbed Tape Applied:
Coil
Standard diameter Un-Stretchered: 730 mm max.
No. Of turns: 55.
Clips per spiral 5 per spiral turns.

Blade
Type: Galvanized.
Thickness: 0.50 mm JIS G 3302 LFQ.
Length: 22 mm.
Width: 19 mm before crimping.
Spacing c to c: 37.5 mm.

Core Wire
Type: galvanized (275 gms m2) high tensile wire (1600 MPa).
Diameter: 2.5 mm diameter.
